SABS 1123 Flanges Supplier

Standard Specification for SABS 1123 Flanges

Size Chart

1/2" to 48"

EN

6Bar, 25Bar, 10Bar, 16Bar, 40Bar

Coating

Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized, Oil Black Paint, Anti-rust Paint.

Pressure Rating

Class 150, 300#, 600 LBS, Class 900, 1500#, 2500 LBS

ANSI Flange Standards

ANSI/EN 1092-1

Types

Forged / Threaded / Screwed / Plate

Types of SABS 1123 Flanges

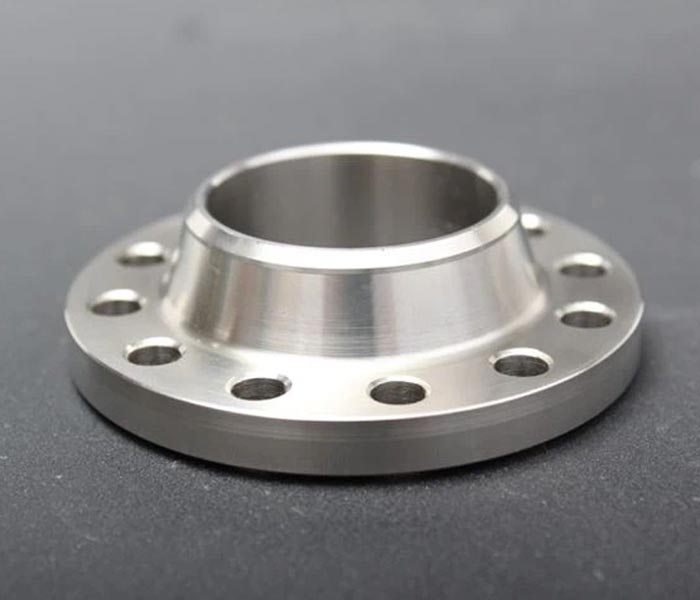

SABS 1123 Weld Neck Flange

SABS 1123 Weld Neck Flange Manufacturer, SABS 1123 Weld Neck Flange Supplier, SABS 1123 Weld Neck Flange Manufacturer & Supplier In Mumbai, India.

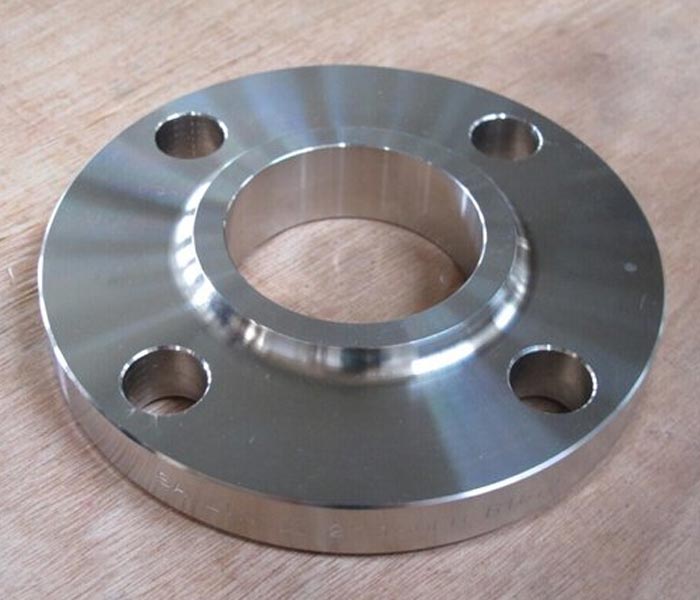

SABS 1123 Slip-On Flange

SABS 1123 Slip-On Flange Manufacturer, SABS 1123 Slip-On Flange Supplier, SABS 1123 Slip-On Flange Manufacturer & Supplier In Mumbai, India.

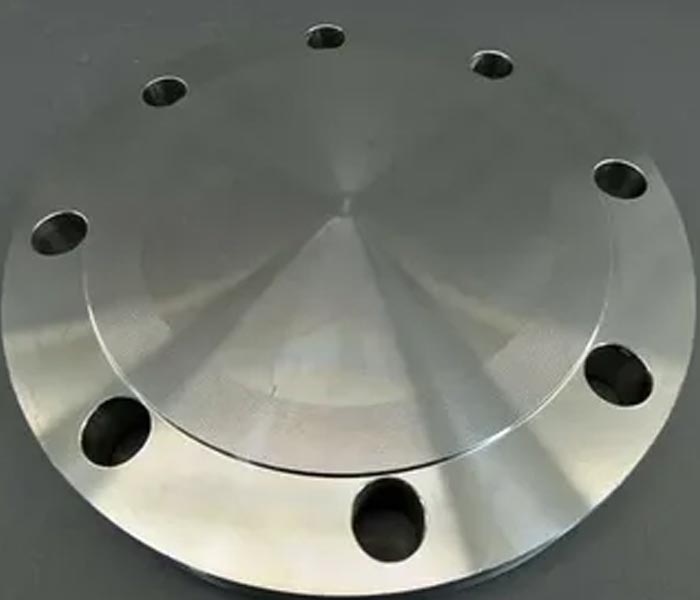

SABS 1123 Blind Flange

SABS 1123 Blind Flange Manufacturer, SABS 1123 Blind Flange Supplier, SABS 1123 Blind Flange Manufacturer & Supplier In Mumbai, India.

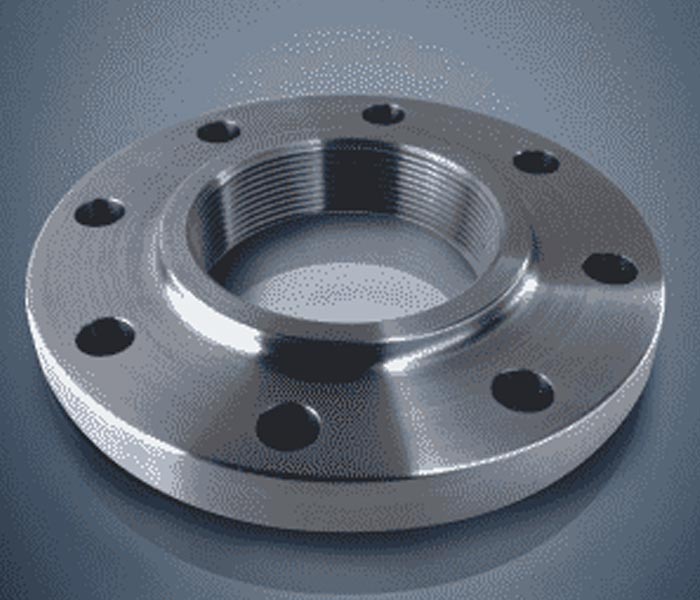

SABS 1123 Threaded Flange

SABS 1123 Threaded Flange Manufacturer, SABS 1123 Threaded Flange Supplier, SABS 1123 Threaded Flange Manufacturer & Supplier In Mumbai, India.

Weight Chart of SABS 1123 Flanges

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Pressure Ratings of SABS 1123 Pipe Flange

ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

SABS Pipe Flange Dimensions

Nominal Bore 15	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600/3	80mm	55mm	4	M10	11mm	10mm
SABS1123-1000/3	95mm	65mm	4	M12	14mm	10mm
SABS1123-1600/3	95mm	65mm	4	M12	14mm	10mm
SABS1123-2500/3	95mm	65mm	4	M12	14mm	14mm
SABS1123-4000/3	95mm	65mm	4	M12	14mm	14mm
Nominal Bore 20	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	90mm	65mm	4	M10	11mm	10mm
SABS1123-1000	105mm	75mm	4	M12	14mm	10mm
SABS1123-1600	105mm	75mm	4	M12	14mm	10mm
SABS1123-2500	105mm	75mm	4	M12	14mm	14mm
SABS1123-4000	105mm	75mm	4	M12	14mm	14mm
Nominal Bore 25	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	100mm	75mm	4	M10	11mm	10mm
SABS1123-1000	115mm	85mm	4	M12	14mm	10mm
SABS1123-1600	115mm	85mm	4	M12	14mm	10mm
SABS1123-2500	115mm	85mm	4	M12	14mm	16mm
SABS1123-4000	115mm	85mm	4	M12	14mm	16mm
Nominal Bore 32	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	120mm	90mm	4	M12	14mm	10mm
SABS1123-1000	140mm	100mm	4	M16	18mm	10mm
SABS1123-1600	140mm	100mm	4	M16	18mm	10mm
SABS1123-2500	140mm	100mm	4	M16	18mm	18mm
SABS1123-4000	140mm	100mm	4	M16	18mm	18mm
Nominal Bore 40	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	130mm	100mm	4	M12	14mm	10mm
SABS1123-1000	150mm	110mm	4	M16	18mm	10mm
SABS1123-1600	150mm	110mm	4	M16	18mm	10mm
SABS1123-2500	150mm	110mm	4	M16	18mm	20mm
SABS1123-4000	150mm	110mm	4	M16	18mm	20mm
Nominal Bore 50	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	140mm	110mm	4	M12	14mm	10mm
SABS1123-1000	165mm	125mm	4	M16	18mm	10mm
SABS1123-1600	165mm	125mm	4	M16	18mm	12mm
SABS1123-2500	165mm	125mm	4	M16	18mm	20mm
SABS1123-4000	165mm	125mm	4	M16	18mm	20mm
Nominal Bore 65	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	160mm	130mm	4	M12	14mm	10mm
SABS1123-1000	185mm	145mm	4	M16	18mm	12mm
SABS1123-1600	185mm	145mm	4	M16	18mm	12mm
SABS1123-2500	185mm	145mm	8	M16	18mm	22mm
SABS1123-4000	185mm	145mm	8	M16	18mm	22mm
Nominal Bore 80	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	190mm	150mm	4	M16	18mm	10mm
SABS1123-1000	200mm	160mm	8	M16	18mm	12mm
SABS1123-1600	200mm	160mm	8	M16	18mm	14mm
SABS1123-2500	200mm	160mm	8	M16	18mm	22mm
SABS1123-4000	200mm	160mm	8	M16	18mm	22mm
Nominal Bore100	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	210mm	170mm	4	M16	18mm	10mm
SABS1123-1000	220mm	180mm	8	M16	18mm	12mm
SABS1123-1600	220mm	180mm	8	M16	18mm	14mm
SABS1123-2500	235mm	190mm	8	M20	22mm	25mm
SABS1123-4000	235mm	190mm	8	M20	22mm	25mm
Nominal Bore150	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	240mm	200mm	8	M16	18mm	12mm
SABS1123-1000	250mm	210mm	8	M16	18mm	14mm
SABS1123-1600	250mm	210mm	8	M16	18mm	16mm
SABS1123-2500	270mm	220mm	8	M24	26mm	28mm
SABS1123-4000	270mm	220mm	8	M24	26mm	28mm
Nominal Bore200	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	265mm	225mm	8	M16	18mm	12mm
SABS1123-1000	285mm	240mm	8	M20	22mm	16mm
SABS1123-1600	285mm	240mm	8	M20	22mm	18mm
SABS1123-2500	300mm	250mm	8	M24	26mm	30mm
SABS1123-4000	300mm	250mm	8	M24	26mm	30mm
Nominal Bore250	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	320mm	280mm	8	M16	18mm	14mm
SABS1123-1000	340mm	295mm	8	M20	22mm	18mm
SABS1123-1600	340mm	295mm	12	M20	22mm	22mm
SABS1123-2500	360mm	310mm	12	M24	26mm	28mm
SABS1123-4000	375mm	320mm	12	M24	26mm	32mm
Nominal Bore300	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	375mm	335mm	12	M16	18mm	16mm
SABS1123-1000	395mm	350mm	12	M20	22mm	20mm
SABS1123-1600	405mm	355mm	12	M24	26mm	25mm
SABS1123-2500	425mm	370mm	12	M24	26mm	30mm
SABS1123-4000	450mm	385mm	12	M30	33mm	38mm
Nominal Bore500	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	645mm	600mm	20	M20	22mm	25mm
SABS1123-1000	670mm	620mm	20	M24	26mm	32mm
SABS1123-1600	715mm	650mm	20	M30	33mm	40mm
SABS1123-2500	730mm	660mm	20	M30	33mm	50mm
SABS1123-4000	755mm	670mm	20	M39	39mm	70mm

South Africa Standard SABS/SANS 1123 FLange CLASS 600KPA Specifications

Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	75	8	10	8	10	16	28	35	2	M10	4	11	50	26	6	4	25
15	21.3	80	8	10	8	10	16	30	40	2	M10	4	11	55	30	6	4	30
20	26.9	90	8	10	8	10	18	32	50	2	M10	4	11	65	38	6	4	40
25	33.7	100	8	10	8	10	18	35	60	2	M10	4	11	75	42	6	4	50
32	42.4	120	8	10	8	10	20	35	70	2	M12	4	14	90	55	6	6	60
40	48.3	130	8	10	8	10	20	38	80	3	M12	4	14	100	62	7	6	70
50	60.3	140	8	10	8	10	22	38	90	3	M12	4	14	110	74	8	6	80
65	76.1	160	8	10	8	10	26	38	110	3	M12	4	14	130	88	9	6	100
80	88.9	190	10	10	10	10	28	42	128	3	M16	4	18	150	102	10	8	110
100	114.3	210	10	10	10	10	34	45	148	3	M16	4	18	170	130	10	8	130
*125	139.7	240	13	12	13	12	39	48	178	3	M16	8	18	200	155	10	8	160
150	168.3	265	13	12	13	12	39	48	202	3	M16	8	18	225	184	12	10	185
*175	193.7	295	13	14	-	14	-	52	230	3	M16	8	18	255	210	12	10	-
200	219.1	320	13	14	-	14	-	55	258	3	M16	8	18	280	236	15	10	-
*225	244.5	345	16	16	-	16	-	58	285	3	M16	8	18	305	264	15	12	-
250	273	375	16	16	-	16	-	60	312	3	M16	12	18	335	290	15	12	-
300	323.9	440	20	20	-	20	-	62	365	4	M20	12	22	395	342	15	12	-
350	355.6	490	22	22	-	22	-	62	415	4	M20	12	22	445	385	15	12	-
400	406.4	540	22	22	-	22	-	65	465	4	M20	16	22	495	438	15	12	-
450	457.2	595	24	25	-	25	-	65	520	4	M20	16	22	550	492	15	12	-
500	508	645	24	25	-	25	-	68	570	4	M20	20	22	600	538	15	12	-
550	559	705	24	28	-	28	-	68	620	5	M24	20	26	655	590	16	12	-
600	609.6	755	24	30	-	30	-	70	670	5	M24	20	26	705	640	16	12	-
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa
