MSS SP44 Flanges Manufacturer

Standard Specification for MSS SP44 Flanges

Size

½” (15 NB) to 48″ (1200NB)

Class

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.

Coating/Surface Treatment

Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove

Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Types of MSS SP44 Flanges

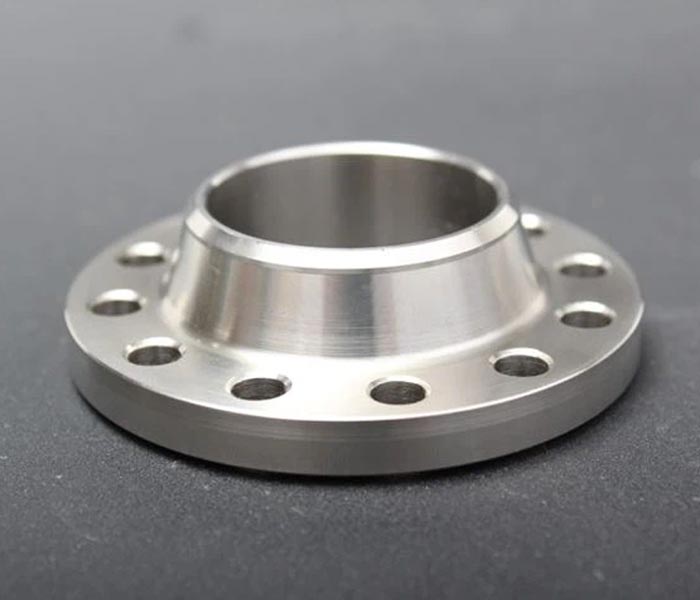

MSS SP44 Weld Neck Flange

MSS SP44 Weld Neck Flange Manufacturer, MSS SP44 Weld Neck Flange Supplier, MSS SP44 Weld Neck Flange Manufacturer & Supplier In Mumbai, India.

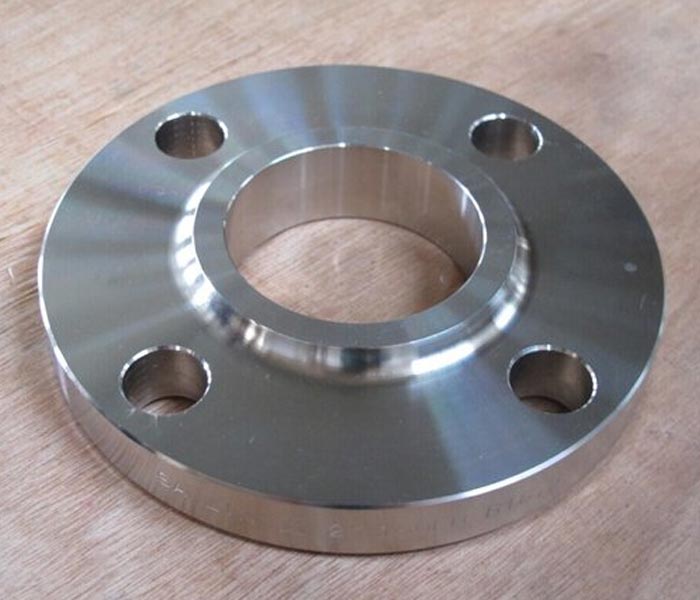

MSS SP44 Slip-On Flange

MSS SP44 Slip-On Flange Manufacturer, MSS SP44 Slip-On Flange Supplier, MSS SP44 Slip-On Flange Manufacturer & Supplier In Mumbai, India.

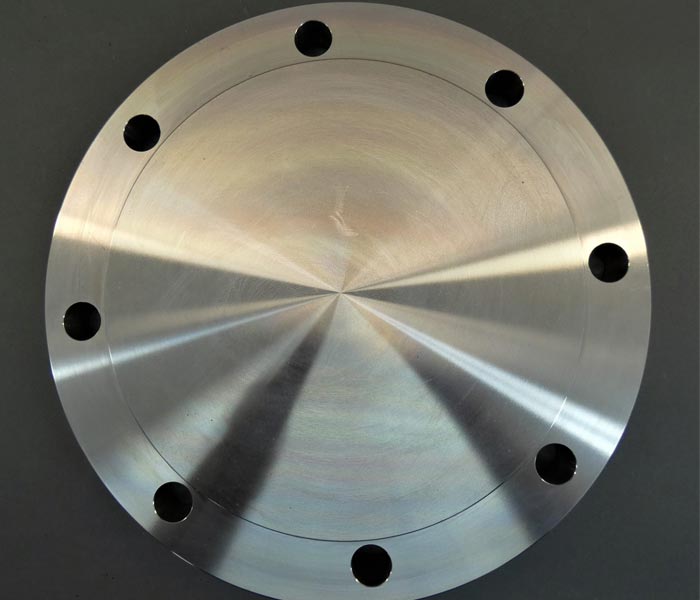

MSS SP44 Blind Flange

MSS SP44 Blind Flange Manufacturer, MSS SP44 Blind Flange Supplier, MSS SP44 Blind Flange Manufacturer & Supplier In Mumbai, India.

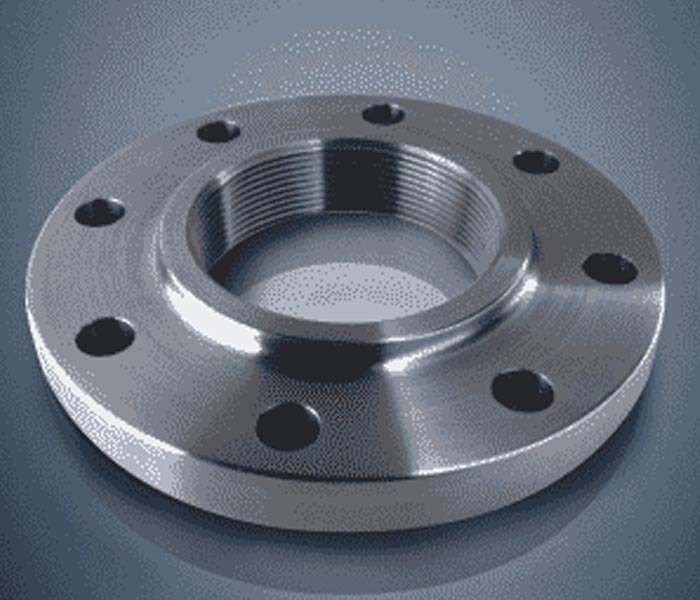

MSS SP44 Threaded Flange

MSS SP44 Threaded Flange Manufacturer, MSS SP44 Threaded Flange Supplier, MSS SP44 Threaded Flange Manufacturer & Supplier In Mumbai, India.

Dimension Of MSS SP-44 Flange

Diameter Of NormalPipe	O.D. (Outside Daimeter) OF Flange	Thick.	Length Through Hub	Daimeter of Hub at Base	Hub Daimeter Top	Raised Face (RF) Daimeter	Daimeter of Bolt Circle	Number of Bolt Holes	Daimeter of Bolt Holes	Daimeter of Bolt	Fillet Radius Minimum
inches	O	C	Y	X	A	R	BD	BN	BH	DB	r1
26″	870	68.3	120.7	676.1	660.4	749.3	806.5	24	35.1	1 1/4	9.7
28″	927.1	71.4	125.5	726.9	711.2	800.1	863.6	28	35.1	1 1/4	11.2
30″	984.3	74.7	136.7	781.1	762	857.3	914.4	28	35.1	1 1/4	11.2
32″	1060.5	81	144.5	831.9	812.8	914.4	977.9	28	41.1	1 1/2	11.2
34″	1111.3	82.6	149.4	882.7	863.6	965.2	1028.7	32	41.1	1 1/2	12.7
36″	1168.4	90.4	157.2	933.5	914.4	1022.4	1085.9	32	41.1	1 1/2	12.7
38″	1238.3	87.4	157.2	990.6	965.2	1073.2	1149.4	32	41.1	1 1/2	12.7
40″	1289.1	90.4	163.6	1041.4	1016	1124	1200.2	36	41.1	1 1/2	12.7
42″	1346.2	96.8	171.5	1092.2	1066.8	1193.8	1257.3	36	41.1	1 1/2	12.7
44″	1403.4	101.6	177.8	1143	1117.6	1244.6	1314.5	40	41.1	1 1/2	12.7
46″	1454.2	103.1	185.7	1196.8	1168.4	1295.4	1365.3	40	41.1	1 1/2	12.7
48″	1511.3	108	192	1247.6	1219.2	1358.9	1422.4	44	41.1	1 1/2	12.7
50″	1568.5	111.3	203.2	1301.8	1270	1409.7	1479.6	44	47.8	1 3/4	12.7
52″	1625.6	115.8	209.6	1352.6	1320.8	1460.5	1536.7	44	47.8	1 3/4	12.7
54″	1682.8	120.7	215.9	1403.4	1371.6	1511.3	1593.9	44	47.8	1 3/4	12.7
56″	1746.3	124	228.6	1457.5	1422.4	1574.8	1651	48	47.8	1 3/4	12.7
58″	1803.4	128.5	235	1508.3	1473.2	1625.6	1708.2	48	47.8	1 3/4	12.7
60″	1854.2	131.8	239.8	1559.1	1524	1676.4	1759	52	47.8	1 3/4	12.7

Weight Chart Of MSS SP-44 Flange

Flange Standard	Flange Class	Flange Diameter	Flange Bolt Circle Diameter	Flange Number of Bolts	Flange Bolt Size	Flange Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

MSS SP44 Flanges Available Types

Slip On Flange
Blind Flange
Socket Weld Flange

Lap Joint Flange
Threaded Flange
Weld Neck Flange
