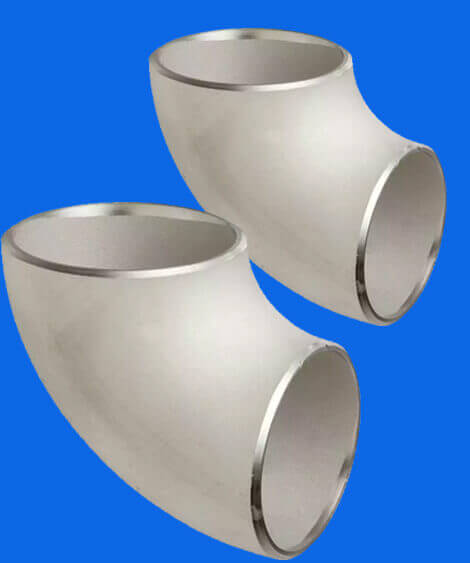

About Incoloy N08810 Buttweld Fittings
Tesco Steel & Engineering is an ISO certified manufacturer of Incoloy N08810/810 Buttweld Fittings, Incoloy N08810/810 Socketweld Fittings, pipes, valves and specialty metal products for various industries worldwide. Within this range, Incoloy N08810 Buttweld Fittings represent one of the most technically demanding products we produce.
Incoloy UNS N08810 is a nickel-iron-chromium alloy with nickel content between 30% and 35%, chromium between 19% and 23%, and iron held at a minimum of 39.5%. Carbon stays below 0.10%, while titanium additions between 0.15% and 0.60% and aluminium between 0.15% and 0.60% stabilise the grain structure during high-temperature service. These controlled compositions give the alloy a tensile strength of 520 MPa, a yield strength of 205 MPa, and 30% elongation, with a melting point of 1385°C. The result is a fitting that resists carburization, oxidation, and acidic corrosion in demanding process environments where standard stainless grades fall short.
Tesco Steel manufactures these fittings to ASTM B366 / ASME SB366, dimensioned to ASME/ANSI B16.9, ASME B16.28, and MSS-SP-43. Sizes run from 1/8" NB to 48" NB, available in seamless, welded, and fabricated construction. Bending radius options cover R=1D through R=10D, plus custom configurations. The product line includes 45° and 90° elbows, equal and reducing tees, crosses, reducers, stub ends, pipe caps, pipe nipples, bends including piggable variants, and two-joint fittings.
