Cable Tray

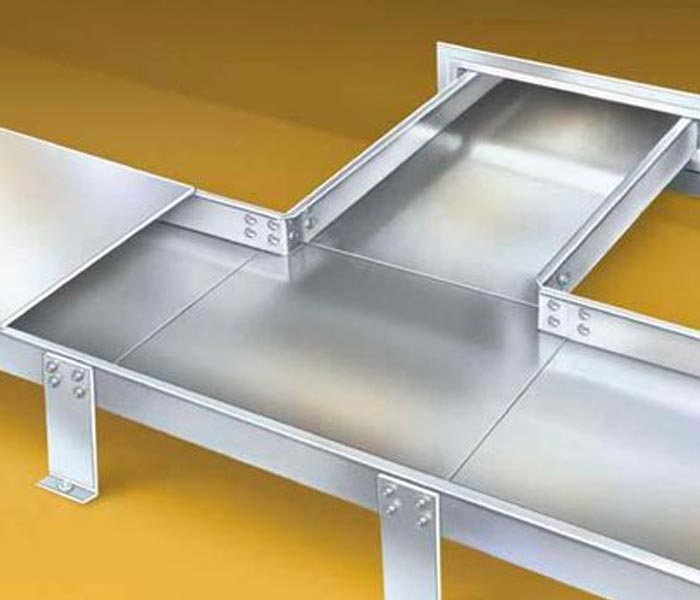

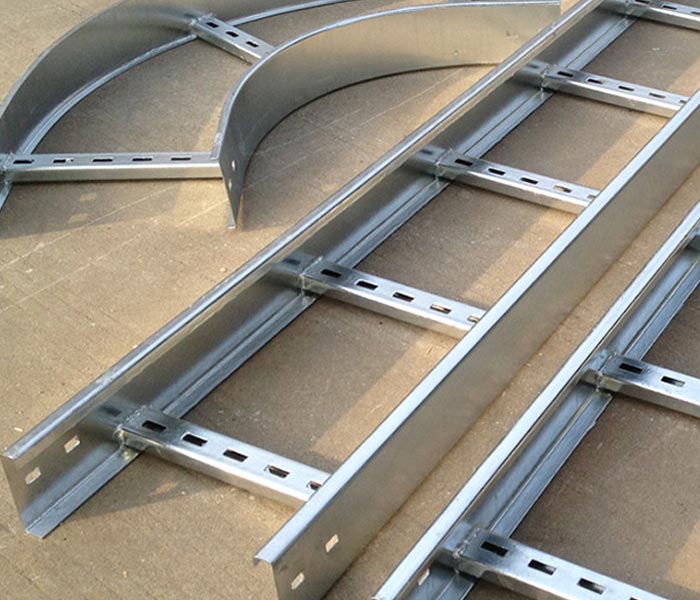

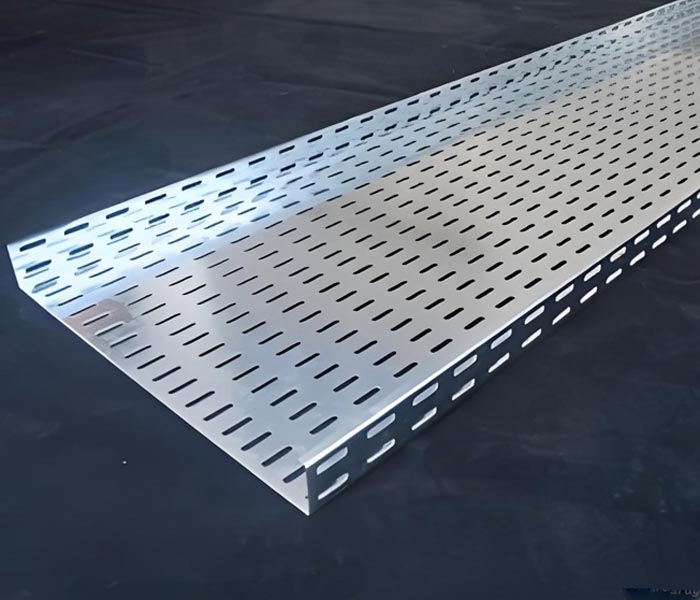

Specification	Ladder Cable Tray	Perforated Cable Tray	Solid Bottom Cable Tray	Stainless Steel Cable Tray
Material	Mild Steel, Aluminum	Mild Steel, SS	SS, Aluminum	SS 304, SS 316
Thickness Range (mm)	1.5 – 3.0	1.2 – 2.5	1.2 – 3.0	1.0 – 2.0
Width Range (mm)	100 – 1200	50 – 1000	50 – 800	50 – 600
Height Range (mm)	50 – 200	25 – 100	25 – 150	25 – 100
Length (mm)	3000	2500 – 3000	2500 – 3000	2000 – 3000
Surface Finish Options	Hot Dip Galvanized, Powder Coated	Pre-Galvanized, Hot Dip Galvanized	Hot Dip Galvanized, Powder Coated	Electro-Polished, Mill Finish
Load Capacity (kg/m)	50 – 300	30 – 150	40 – 200	20 – 120
Bend Radius (mm)	200 – 300	100 – 250	100 – 200	100 – 250
Operating Temperature (°C)	-20 to +120	-20 to +90	-20 to +90	-50 to +150
Standard Compliance	IEC 61537, NEMA VE-1	BS EN 61537, ASTM A123	NEMA VE-1, IEC 61537	BS EN 61537, ASTM A480
Corrosion Resistance Class (CRC)	CRC 3 – CRC 5	CRC 3 – CRC 4	CRC 3 – CRC 5	CRC 5
Ventilation (%)	70 – 80	30 – 50	0	0
Weight (kg/m)	2.0 – 5.5	1.5 – 4.0	1.8 – 4.5	1.2 – 3.0
