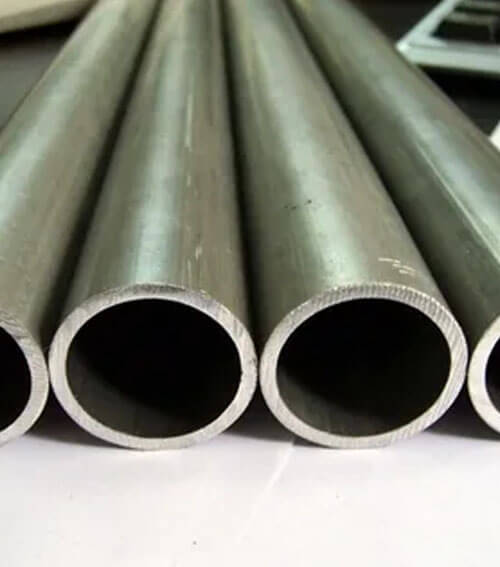

Monel Alloy Pipes/Tubes Manufacturer

  • Home | Other Products

Monel 400/K500 Pipes & Tubes Sizes

ASTM B165 Monel Pipe OD
mm
Pipe WT
mm
in.
Sch
Kg/m
13.72
1.65
1/4
10S
0.50
13.72
2.24
1/4
40S
0.64
13.72
3.02
1/4
80S
0.81
17.15
1.65
3/8
10S
0.64
17.15
2.31
3/8
40S
0.86
17.15
3.20
3/8
80S
1.12
21.34
2.11
1/2
10S
1.02
21.34
2.77
1/2
40S
1.29
21.34
3.73
1/2
80S
1.65
26.67
2.11
3/4
10S
1.30
26.67
2.87
3/4
40S
1.71
26.67
3.91
3/4
80S
2.23
33.40
2.77
1
10S
2.13
33.40
3.38
1
40S
2.54
33.40
4.55
1
80S
3.29
33.40
6.352)
1
160
4.30
42.16
2.77
1¼
10S
2.73
42.16
3.56
1¼
40S
3.44
42.16
4.85
1¼
80S
4.53
42.16
6.352)
1¼
160
5.69
48.26
2.77
1½
10S
3.16
48.26
3.68
1½
40S
4.11
48.26
5.08
1½
80S
5.49
60.33
2.77
2
10S
3.99
60.33
3.91
2
40S
5.52
60.33
5.54
2
80S
7.60
60.33
8.742)
2
160
11.29
73.03
3.05
2½
10S
5.35
73.03
5.16
2½
40S
8.77
73.03
7.01
2½
80S
11.59
88.90
3.05
3
10S
6.56
88.90
5.49
3
40S
11.47
88.90
7.62
3
80S
15.51
88.90
11.132)
3
160
21.67
101.60
3.05
3½
10S
7.53
101.60
5.74
3½
40S
13.78
101.60
8.08
3½
80S
18.92
114.30
3.05
4
10S
8.50
114.30
6.02
4
40S
16.32
114.30
8.56
4
80S
22.67
114.30
13.492)
4
160
34.05
141.30
6.55
5
40S
22.10
141.30
9.53
5
80S
31.44
141.30
15.882)
5
160
49.87
168.28
3.4
6
10S
14.04
168.28
7.11
6
40S
28.69
168.28
10.97
6
80S
43.21
168.28
14.27
6
120
54.75
168.28
18.262)
6
160
68.59
219.08
8.18
8
40S
43.20
219.08
12.7
8
80S
65.63
219.08
18.23
8
120
91.30
219.08
23.012)
8
160
112.97

Monel 400/K500 Pipes & Tubes Pressure

Pipe O.D.
(in.)

 Wall Thickness of Pipe (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300

Nickel, Copper / ASTM B-165 or Equivalent, Maximum Allowable Working Pressure (Psi) For Fractional Sizes

Pipe OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
1/16 6,422 7,872 10,768 13,484
1/8       6,422 9,325 11,823
3/16       4,081 5,935 7,630 11,005
1/4         4,305 5,518 8,053 10,946
3/8           3,530 5,107 7,029
1/2           2,595 3,721 5,078 6,699
5/8           2,051 2,927 3,970 5,200 6,056
3/4           1,696 2,412 3,259 4,249 4,933 5,755 6,422
7/8           1,446 2,051 2,764 3,592 4,161 4,842 5,391
1           5,040 7,140 9,595 12,445 14,390 16,715 18,585



Maximum Allowable Working Pressure (Bar) For Metric Sizes

Pipe OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
3 464 567 672 775 965
4 335 411 491 567 723 873
6     310 360 464 567 723 775
8     227 262 335 411 528 567
10       206 262 320 411 442
12       169 215 262 335 360 411 464
14         182 222 282 303 345 389 433 500 612
16         158 192 244 262 298 335 372 430 528
18         140 169 215 230 262 294 326 377 464
22         113 137 173 186 211 236 262 301 369
25         99 120 152 162 184 206 228 262 320

Factor of Safety = 4, considering tensile strength to be 482.6 MPa at room temperature.


Monel 400/K500 Pipes & Tubes Physical Properties

Color/appearance Gray [6]
Luster Metallic [9]
Melting point 1300 – 1350°C [1]
Density 8.80X103 kg/m3 [2]
State of matter at room temperature (normal phase) Solid [9]
Hardness 110-150 HB [7]
Thermal Conductivity 21.8 W/(m K) [1]
Resistivity 54.7X10-8 ohm-m [2]
Tensile strength (annealed) 550 MPa [2]
Specific heat capacity 427 J/(kg*K) [2]
Modulus of elasticity 179 GPa [2]
